MBBR Moving Bed Biofilm Reactor

Feature

  • 20FT(40FT) Container packaged type
  • Removal of 70% CODcr in case of Bio Chip 30%
  • Polyethylene material in case of Bio chip specific gravity of 1.0 below
  • High organic load (1.2~10kg BOD/m³/day)
  • Need small space & short retention time(4~6hr)
  • No blocking of biofilm
  • Removal of organic (BOD) and Nutrient from wastewater
  • Less sludge transport and generation
  • Resistant to organic load fluctuations, no bulking
  • Easy to manage and maintain operations
  • Easy to apply to existing or expansion systems

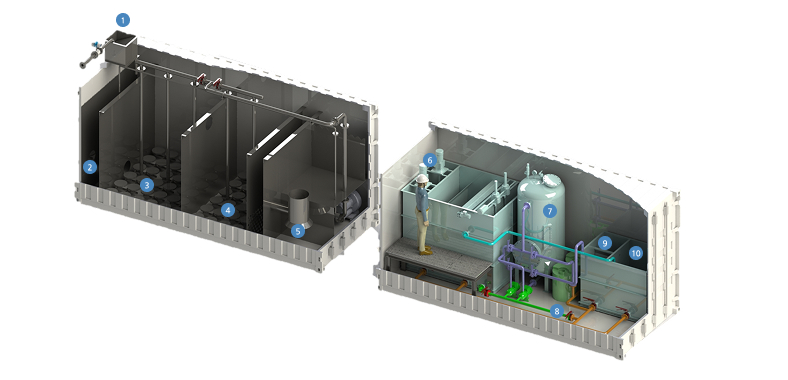

  • 1Screen Tank
  • 2Inlet Chamber
  • 3Saturation Tank Ⅰ
  • 4Saturation Tank Ⅱ
  • 5Gravity Sedimentation Tank
  • 6DAF Tank
  • 7Activated Carbon Filter
  • 8Chemical Tank
  • 9Filter Tank
  • 10Sludge Tank
