Dual Stage Auto Backwashing Filter

Dual stage auto backwashing filter is specially designed to improve the filtration efficiency and to prevent damage of the filter element and semi-permanent operation. Large particle is filtered through 1st filtration by centrifugal force and small particles are filtered through 2nd filtration with wedge wire screen. The automatic back-flushing operation by inlet/oulet differential pressure sensor and unique design with operational solution make a significant contribution to operational reliability and reduce operating and maintenance costs.

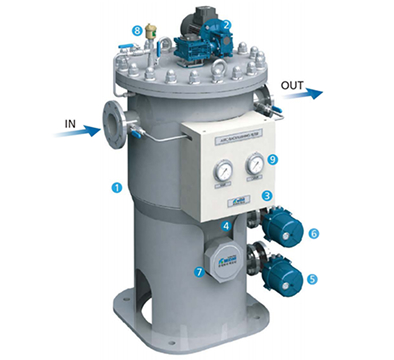

• 1
  CHAMBER
• 2
  GEARED MOTOR
• 3
  GAUGE BOARD
• 4
  DIFFERENTIAL PRESSURE SENSOR
• 5
  BACKFLUSHING VALVE(1st)
• 6
  BACKFLUSHING VALVE(2nd)
• 7
  SIGHT GLASS
• 8
  AIR VENT
• 9
  PRESSURE GAUGE *Included CONTROL PANEL(TM/TC)

• Dual stage auto backflushing filter system(patented)
• Optimised flow dynamic analysis
• Automatic backflushing by differential pressure
• No shutdown for auto backflushing
• Integrated monitoring and control
• No filter element replacement

Filtration

1st separation by centrifugation

2nd filtration by filter element

Backflushing

1st backflushing of the lower sediment in the chamber

2nd backflushing by rotating backflushing arm

Operational convenience

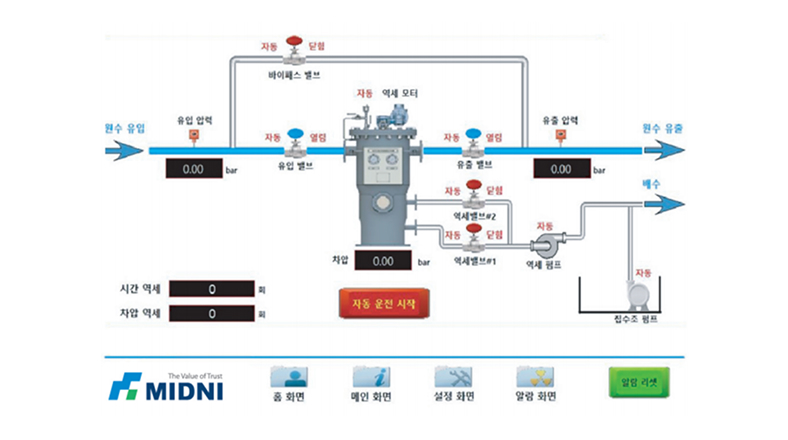

• Operation Screen : Setting backflushing time and cycle according to the user environment.
• Trend Screen : Graphically showing the status of each device over time.
• Alarm Screen : Displays the alarm contents by device
• TM/TC support : Diverse options, including remote monitoring and control.

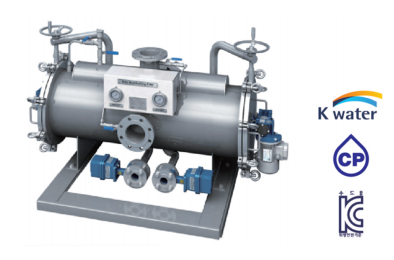

Horizontal Dual Stage Auto Backflushing Filter

• Reduced size compared to vertical type
• High space efficiency allows installation even in low-ceiling area
• Equipped with an integrated lift for efficient maintenance

Bag filter

• Applies flow-equalizing distribution technology (patented)
• Offers various media porosity options depending on raw-water conditions
• Suitable for small treatment capacities
• Cost-effective initial installation
