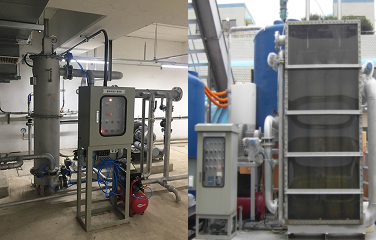

Fiber Filter Module

Feature

• Depth filtration
• Filtration above 5 μm
• 0.5 NTU
• Material of PP, Nylon
• Backflushing time less than 3 minutes
• Backflushing flow of 0.5 ~ 3%

여과공정

그물망을 이용한 여재 압착
우수한 압착력으로 심층여과
고효율 섬유여과

역세공정

섬유여재다발 상하단 위치 가변적
장기운전 후에도 역세효율 우수
여과효율 향상에 기인

RW : Raw Water, FW : Filtered Water, BW : Back-washed Water

• Excellent and stable filtrering quality through uniform compression of the mesh (filter layer thickness: 5–7 cm)
• High backwash efficiency through fluid injection and compression/relaxation of fibers during cleaning
• No need for regular chemical cleaning
• Less than 1/7 the required space compared to sand filtration, over 4 times the filtration area, and 1.6 times the filtration speed
